MT01 Digital Multimeter 2000 Counts 600V AC/DC Volt Meter Auto-ranging NCV Phase Sequence Resistance Multimetre with Backlight

Description

The MT01 Digital Multimeter is a versatile electrical testing tool that supports 600V AC/DC voltage measurement, resistance testing, continuity testing, non-contact voltage detection, phase and live wire identification, etc., with 2000 counts True RMS (TRMS) measurement capability. It features a smart auto mode that automatically tests voltage, resistance, and continuity, making it easy to operate. It is suitable for scenarios such as car circuit detection, home electrical fault diagnosis, industrial equipment electrical inspection, and is an excellent choice for electricians, electronics enthusiasts, and home users.

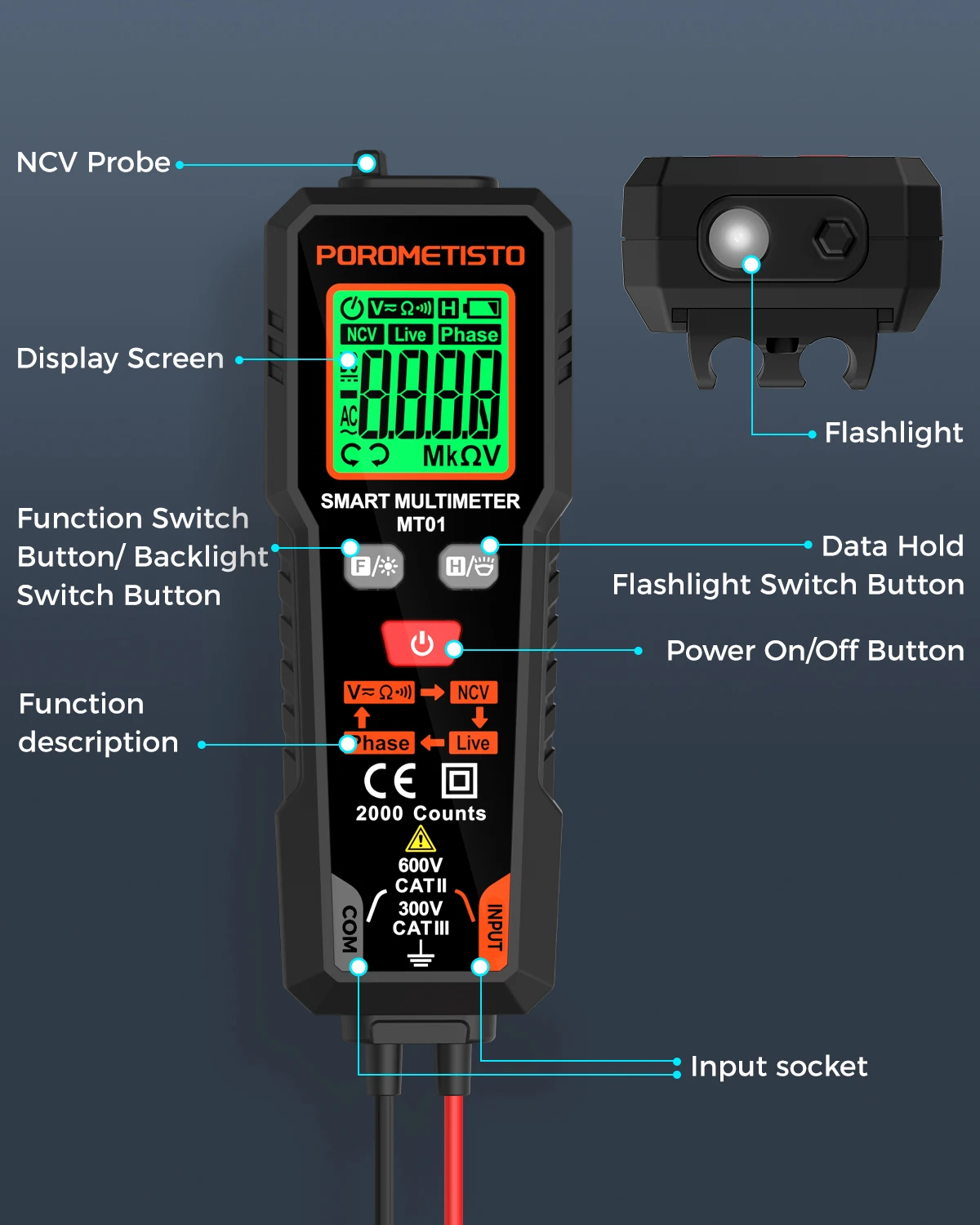

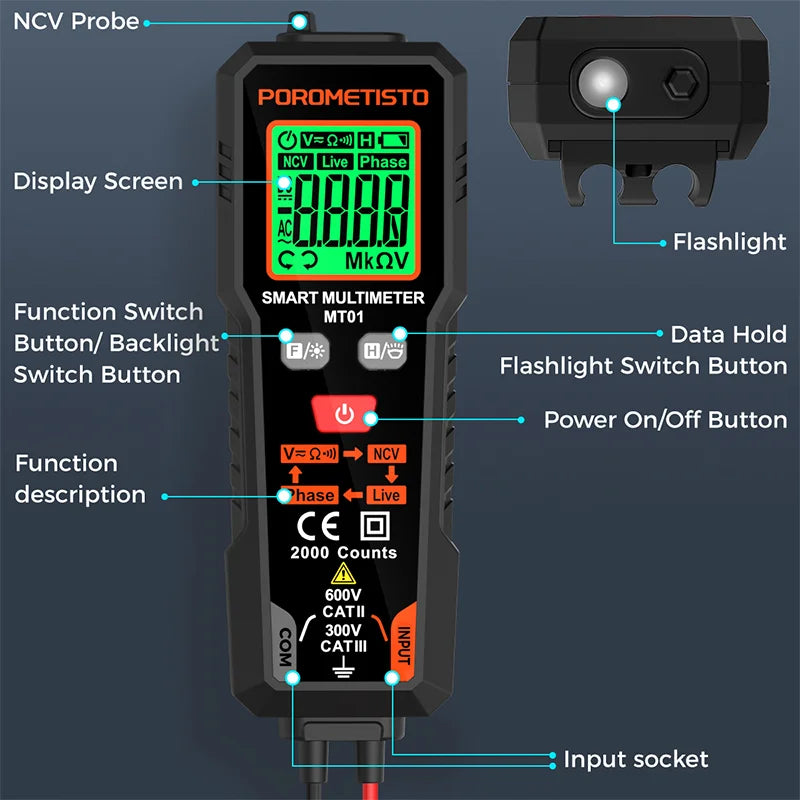

Features

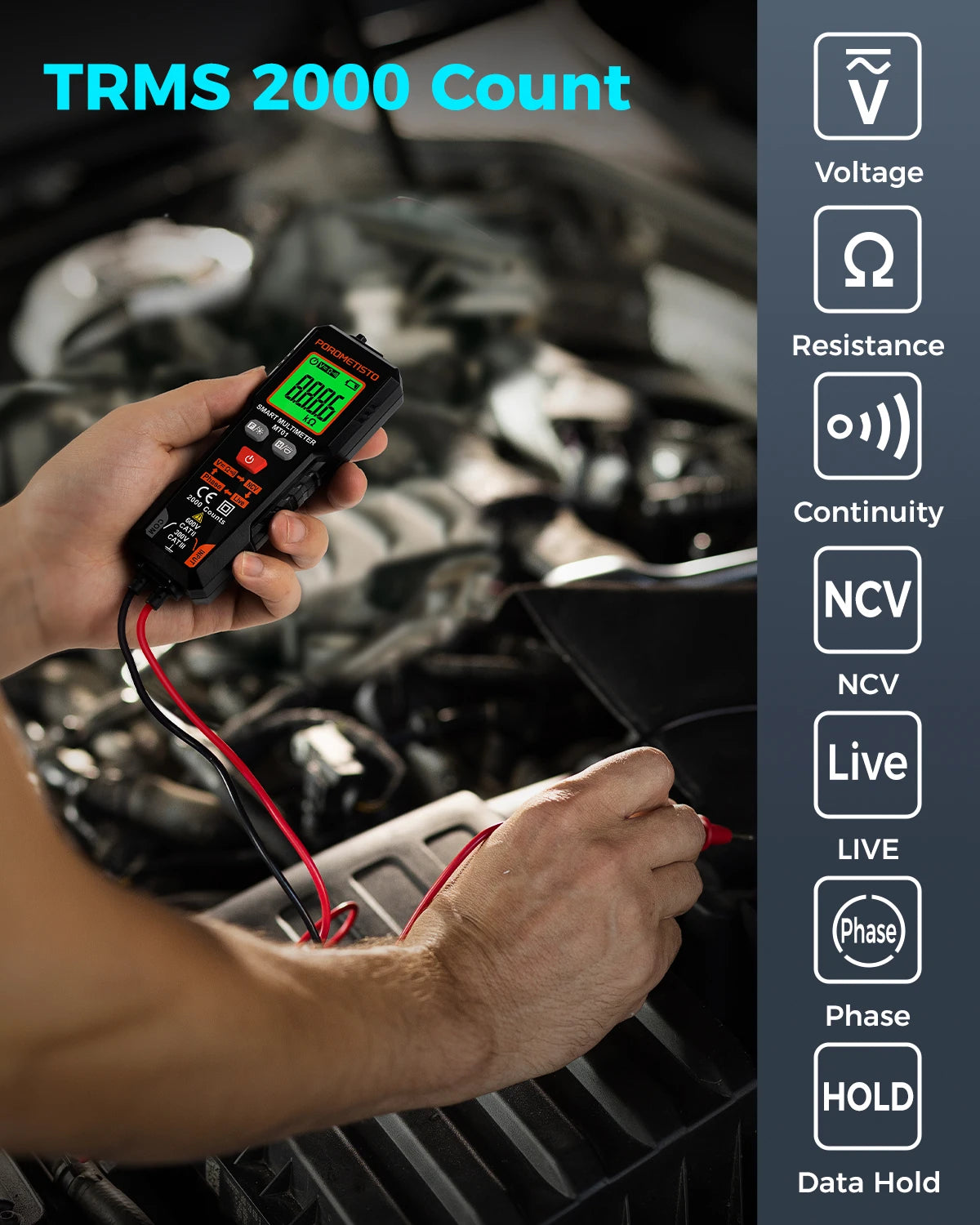

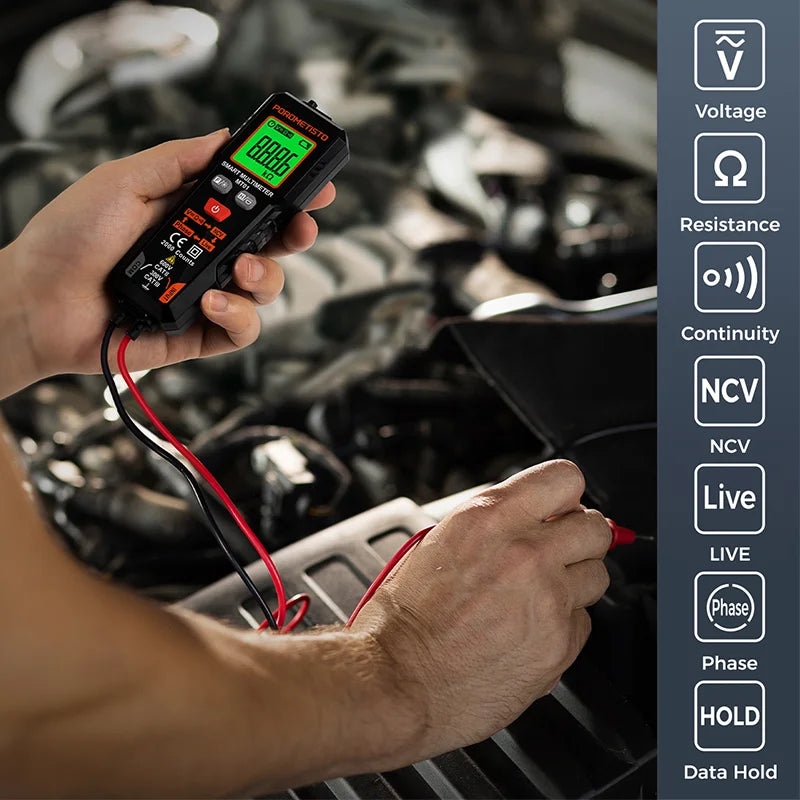

● TRMS 2000 Counts: With 2000 counts True RMS measurement, ensuring accurate data.

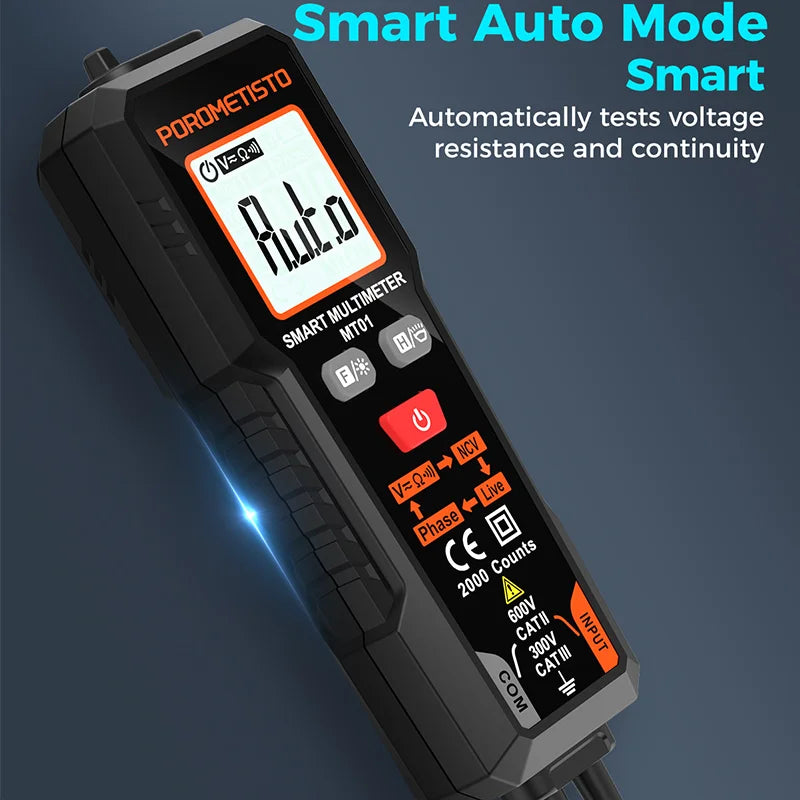

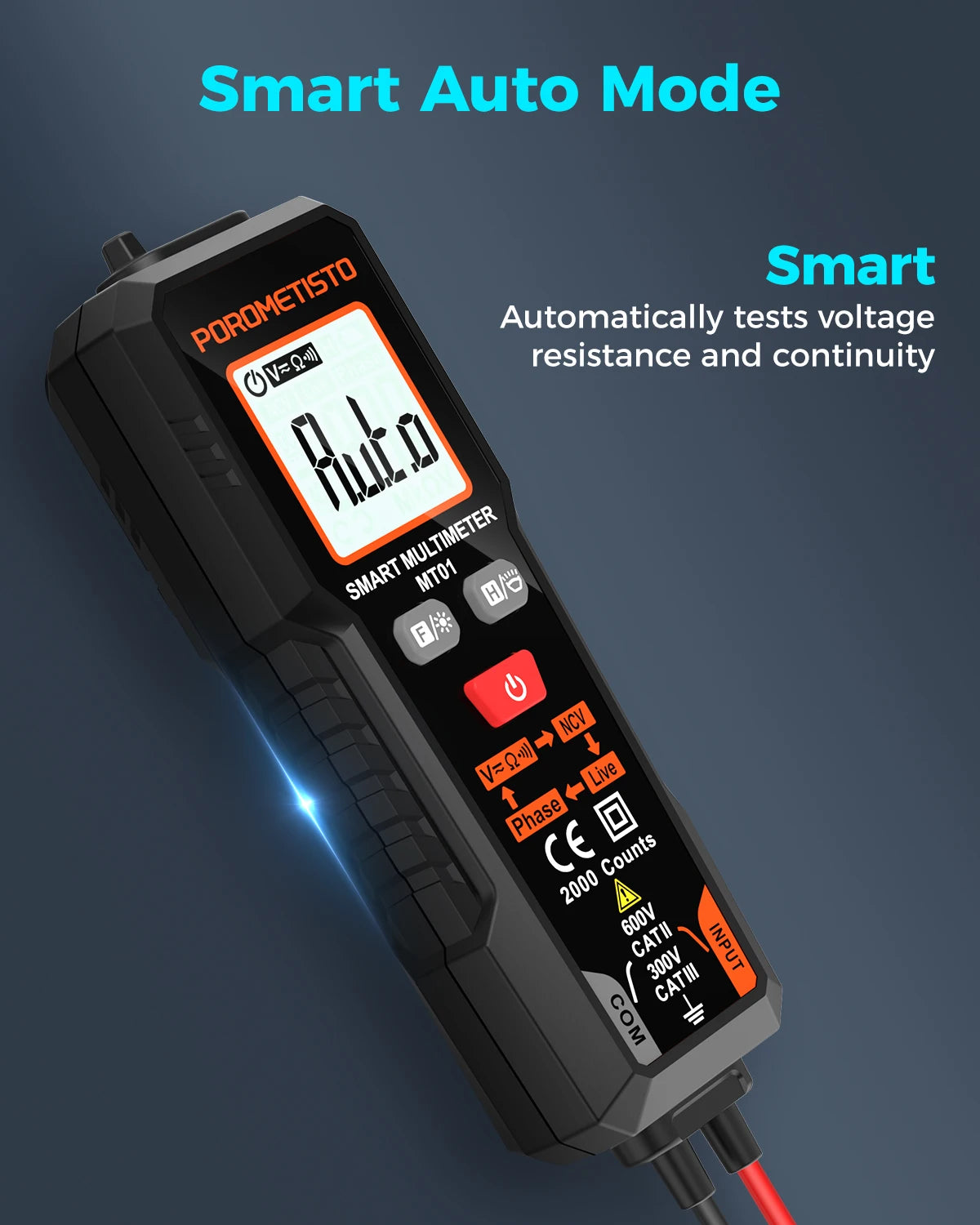

● Smart Auto Mode: Automatically tests voltage, resistance, and continuity, simplifying the operation process.

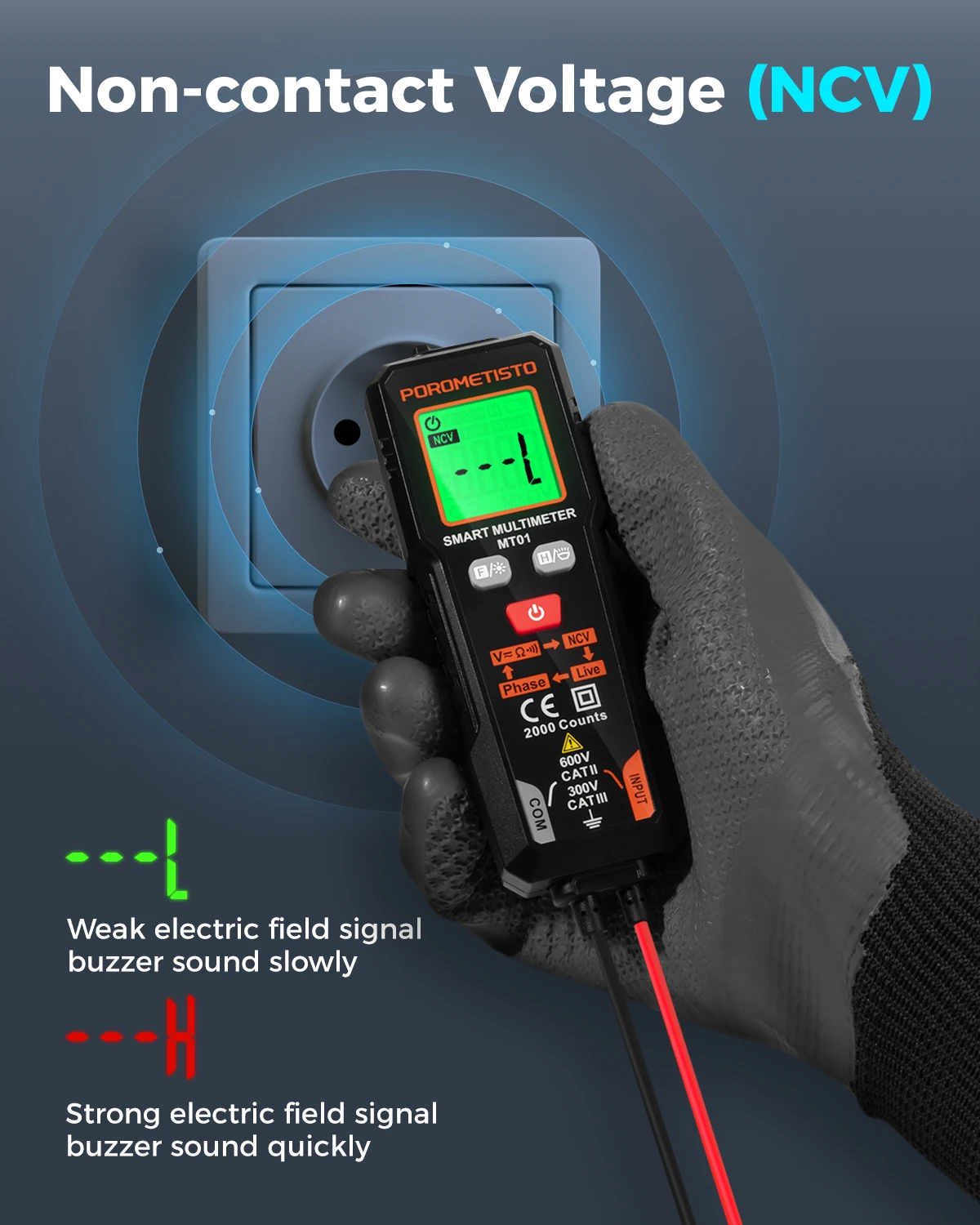

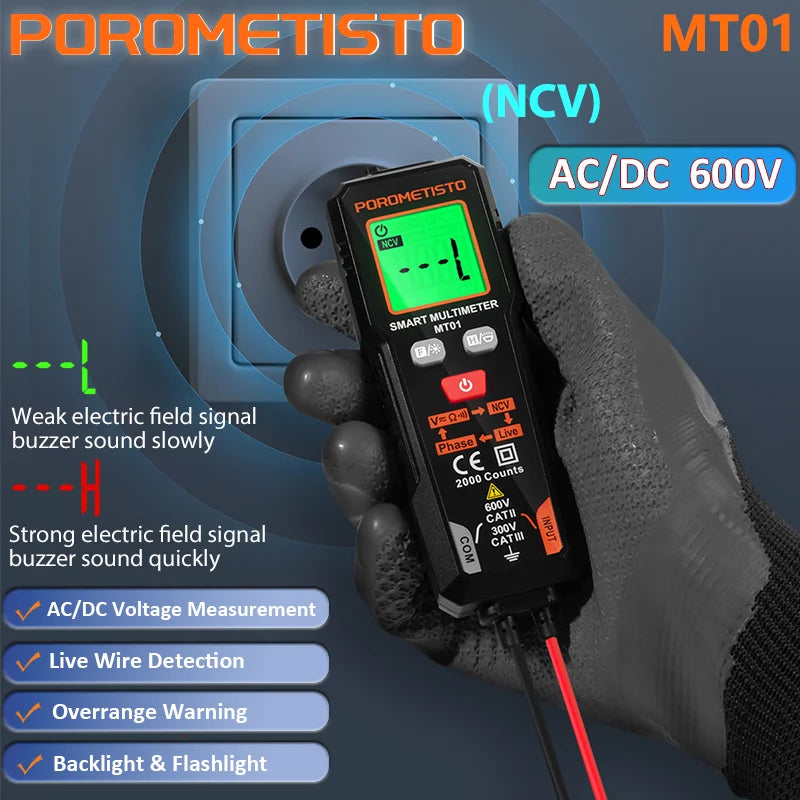

● Multiple Testing Functions: Supports AC/DC Voltage, Resistance, Continuity, Non-contact Voltage, Phase, Live detection, with comprehensive functions.

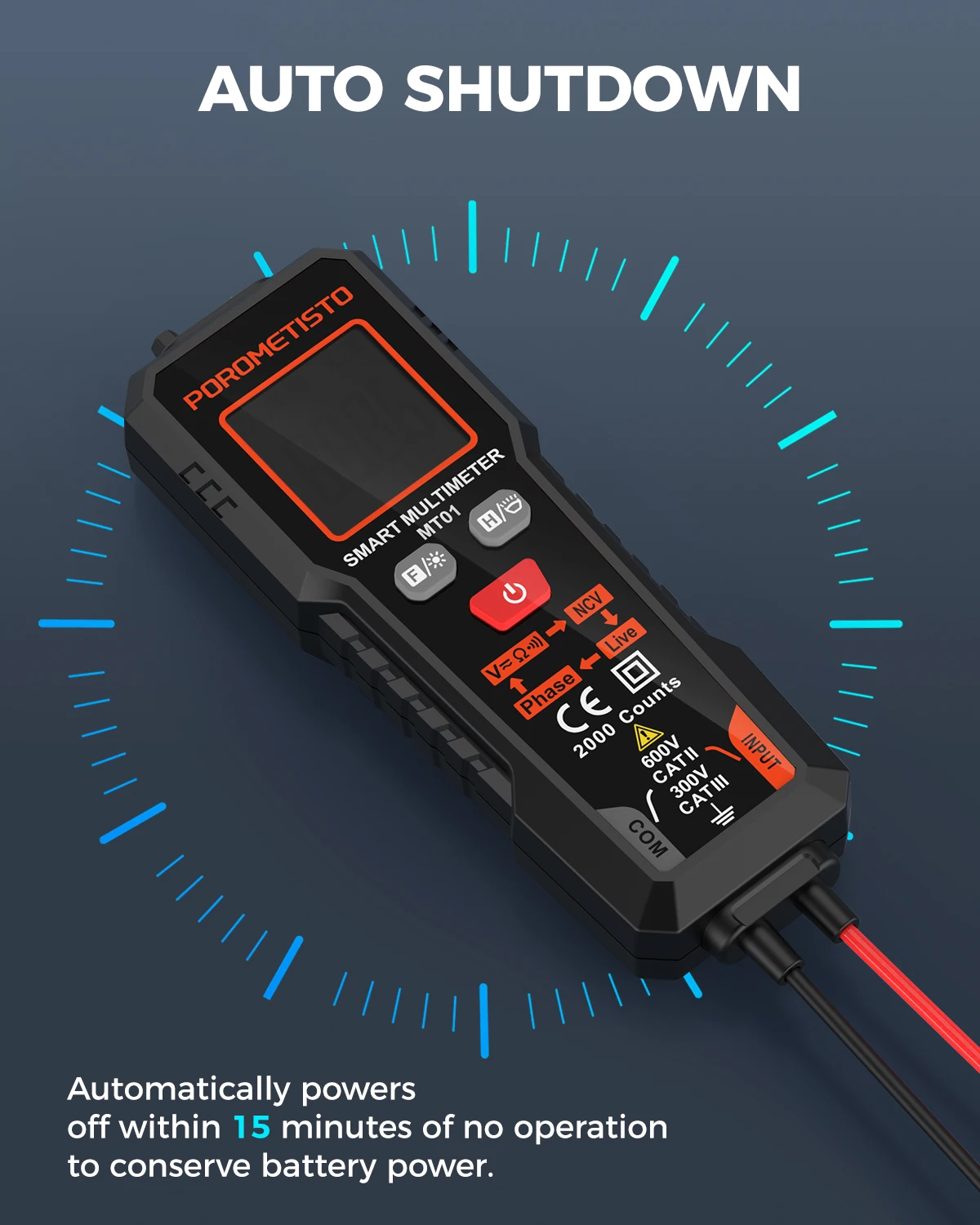

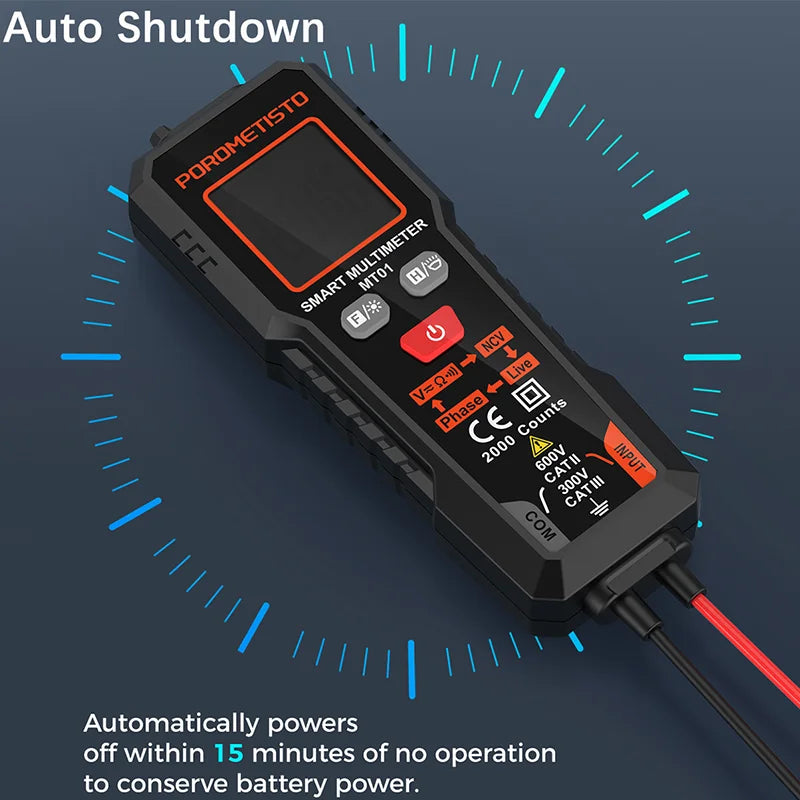

● Auto Shutdown: Automatically powers off within 15 minutes of no operation to conserve battery power.

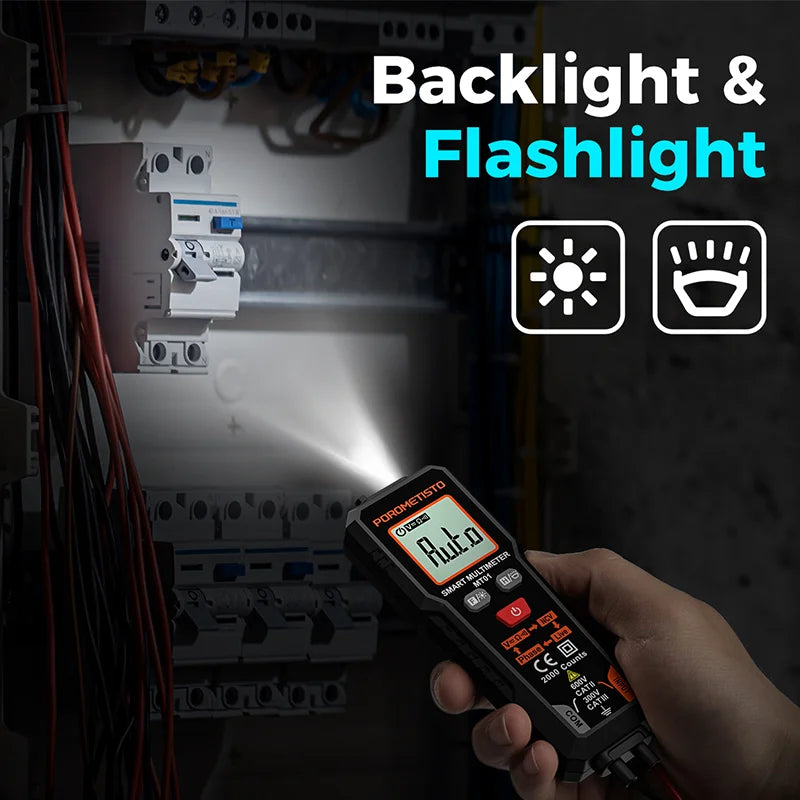

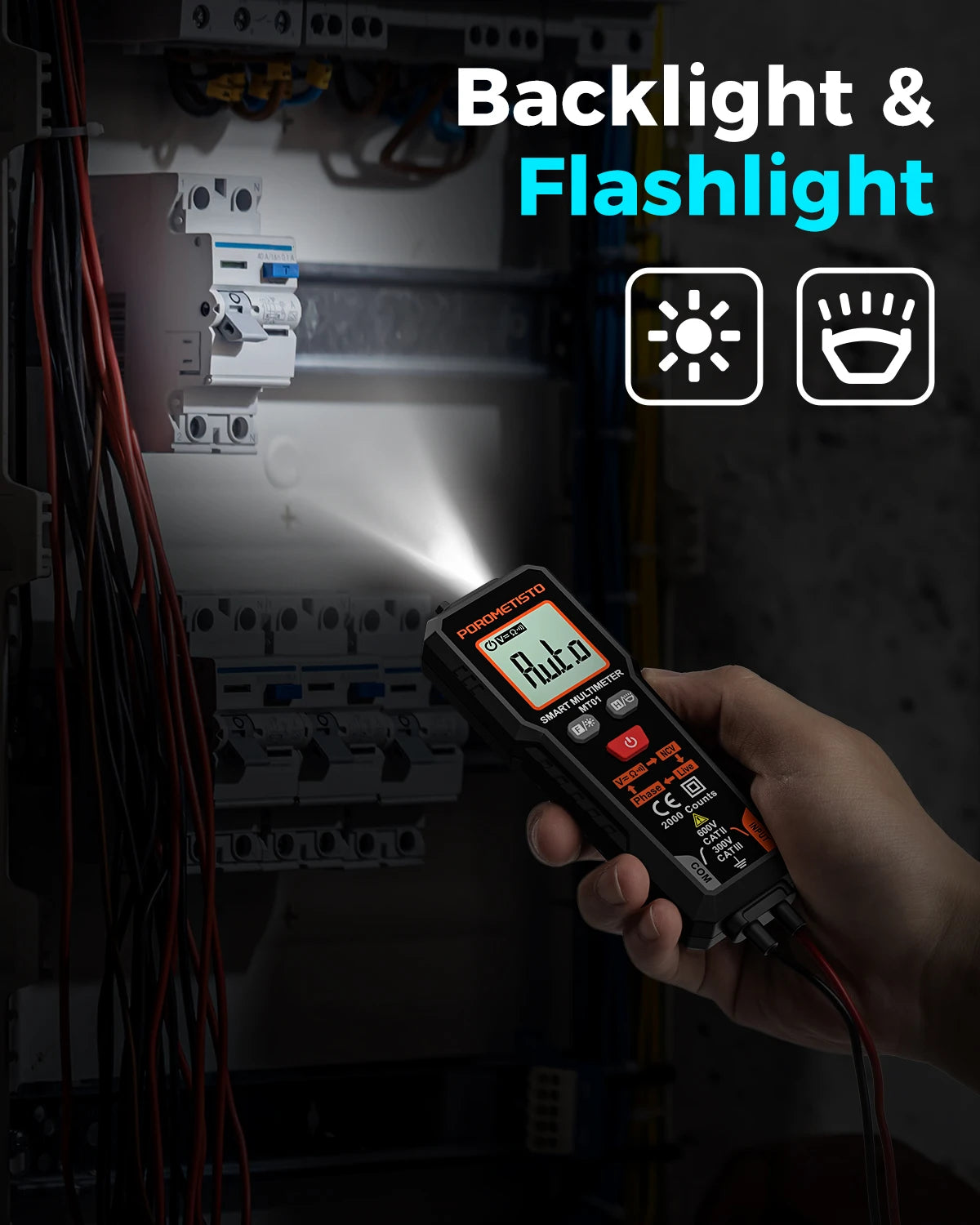

● Backlight & Flashlight: Equipped with a high-brightness backlit display and flashlight, enabling clear reading and operation in dim environments (such as inside distribution boxes).

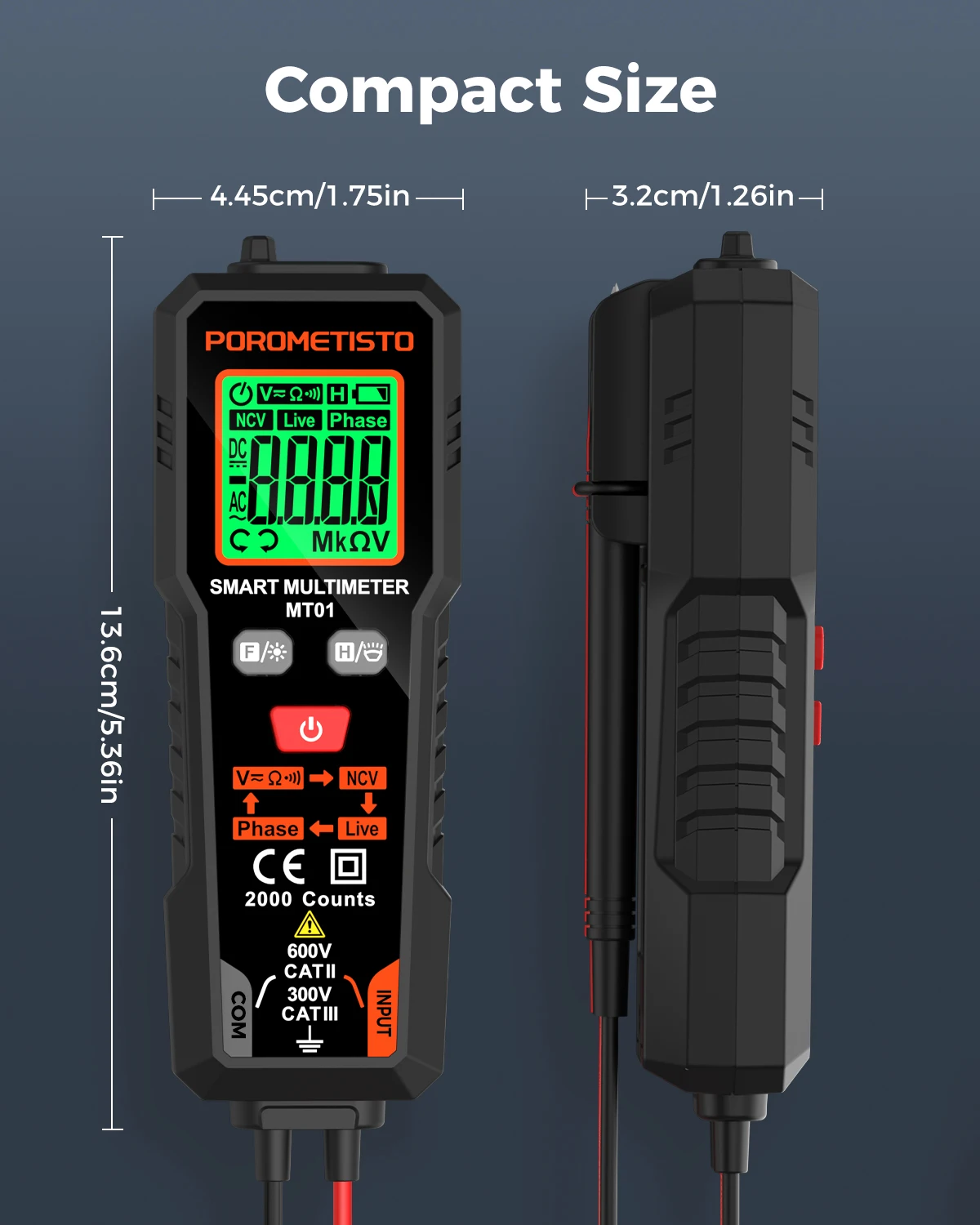

● Compact Size: Dimensions are 13.6cm×4.45cm×3.2cm, portable and easy to use in narrow spaces.
● Data Hold: Can lock measurement data for easy recording and viewing.

Specification

● Model: MT01
● Material: ABS
● DC Voltage: 2V/20V/200V/600V, ±(0.5%+3)
● AC Voltage: 2V/20V/200V/600V, ±(1.0%+3)
● Resistance: 2000Ω/20kΩ/200kΩ/2MΩ/20MΩ
● Counts: 2000
● Operating temperature and humidity: 0~40℃(<80%RH,<10℃ non-condensing)
● Storage temperature and humidity: -10~60℃(<70%RH,remove the battery)
● Temperature coefficient: 0.1 accuracy/℃(<18℃ or>28℃)
● Maximum voltage allowed between measuring end and earth: 600V
● Over-rangeindication: "OL"is displayed.
● Auto/Manual Range: Auto
● Live Test: Yes
● NCV: Yes
● Phase Test: Yes
● Continuity: Yes
● Data Hold: Yes
● True RMS: Yes
● Auto Power Off: Yes(15 minutes)
● Battery low voltage indication: Yes
● Flashlight: Yes
● Backlight: Yes
● Input polarity indication: "-"sign is automatically dsplayed.
● Power supply: 2×1.5V AAA batteries(Not included)
● Dimensions: 13.6*4.45*3.2cm

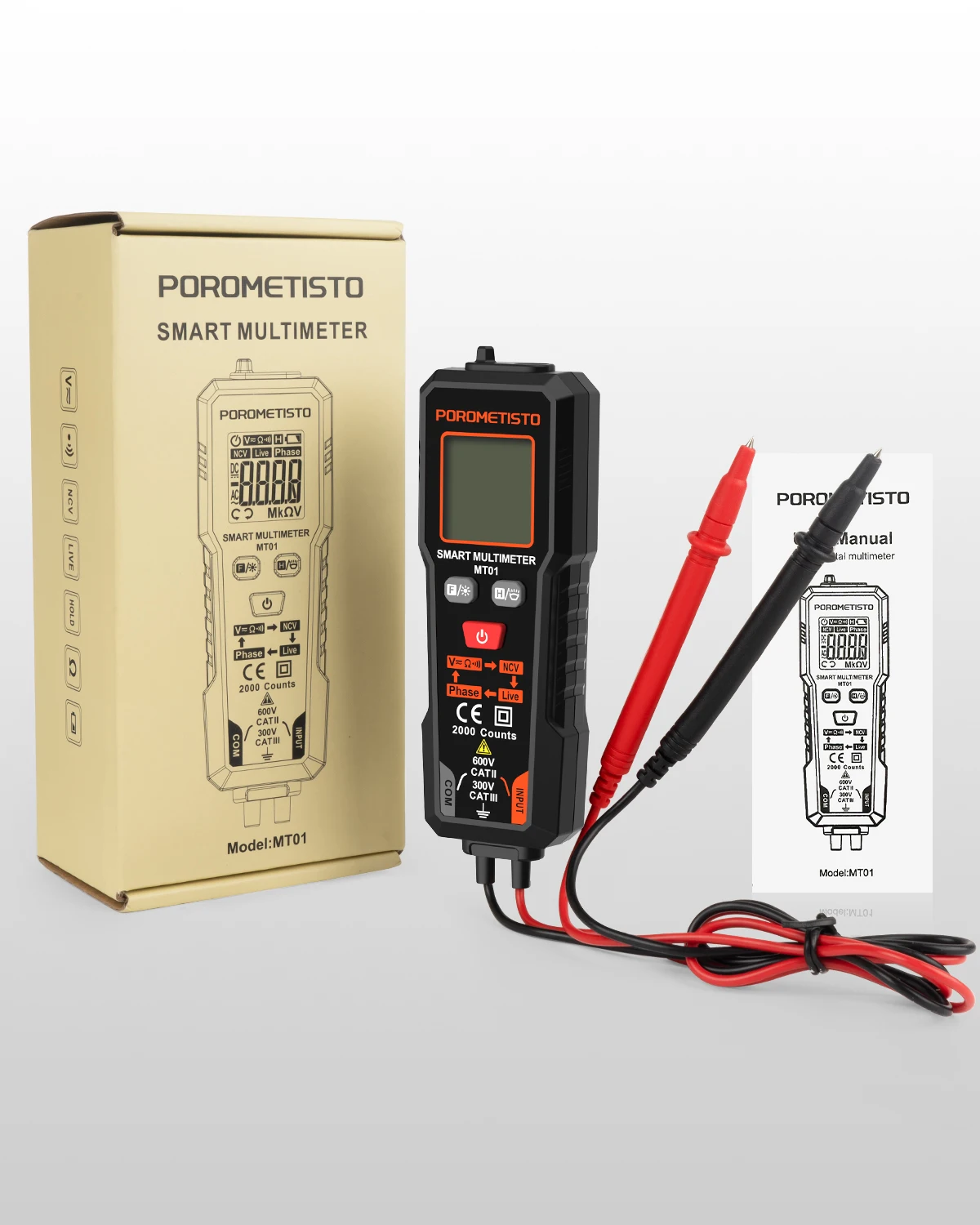

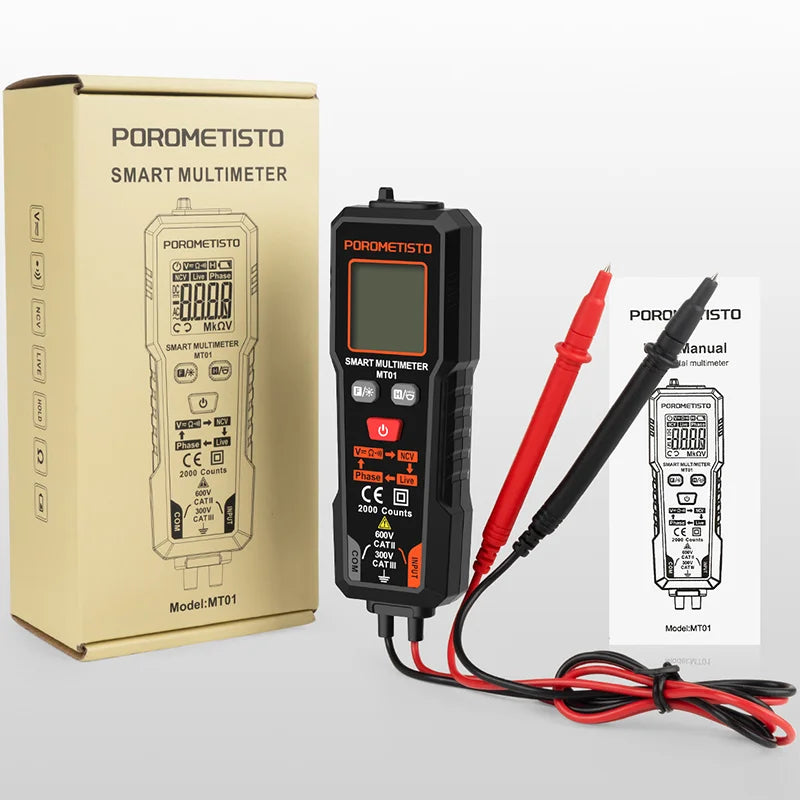

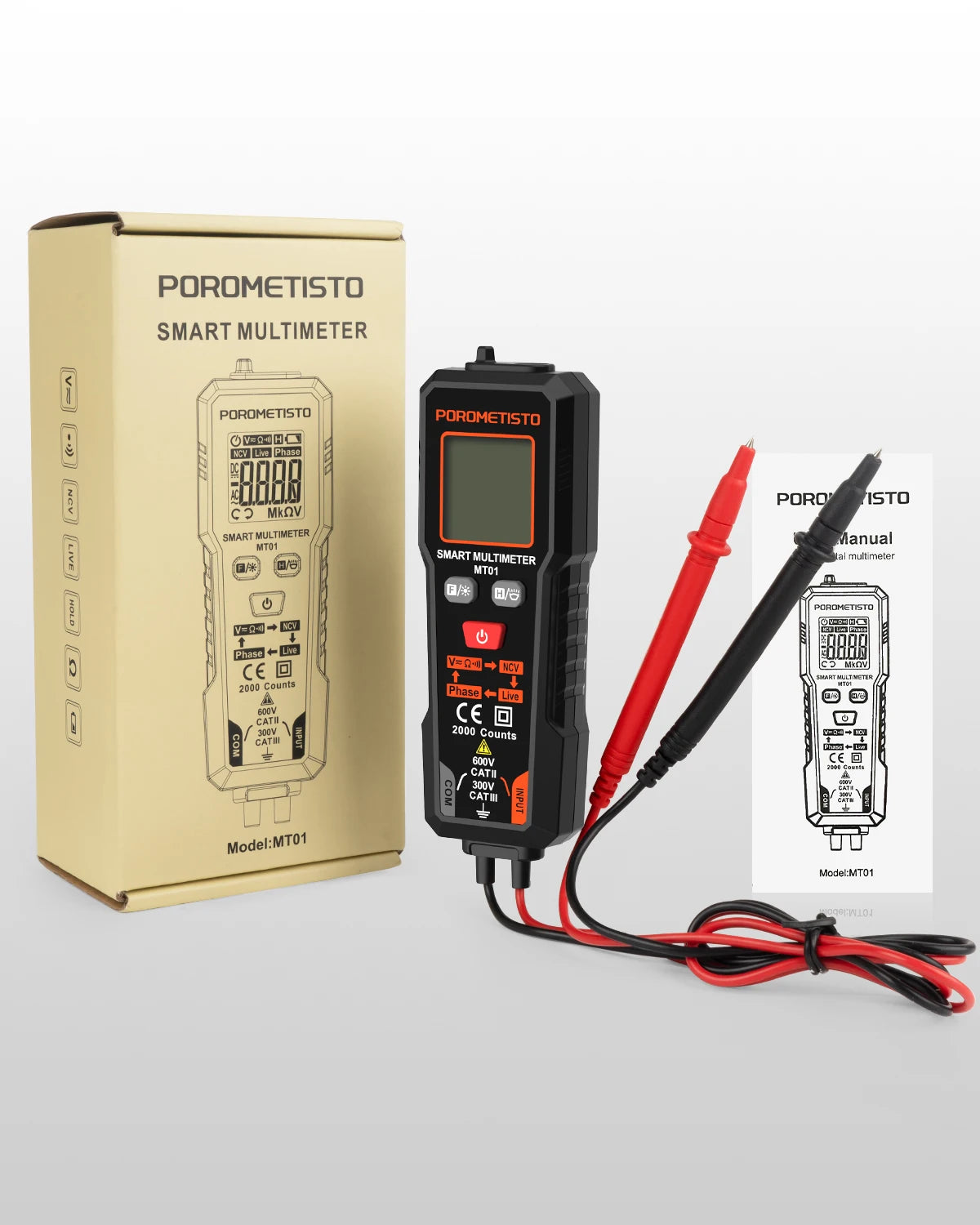

Packing list

● 1*Smart Multimeter
● 2*Test Leads
● 1*User Manual (English)
