SPECIFICATIONS

Alarm Type: Vehicle Backup Cameras

Brand Name: weijunxian

Guiding Line: Yes

High-concerned chemical: None

Length of Video Cable: 10M

Lens Material: Glass

Origin: Mainland China

Shell Material: Plastic

Viewing Angle : 140°

Wire or Wireless: Wire

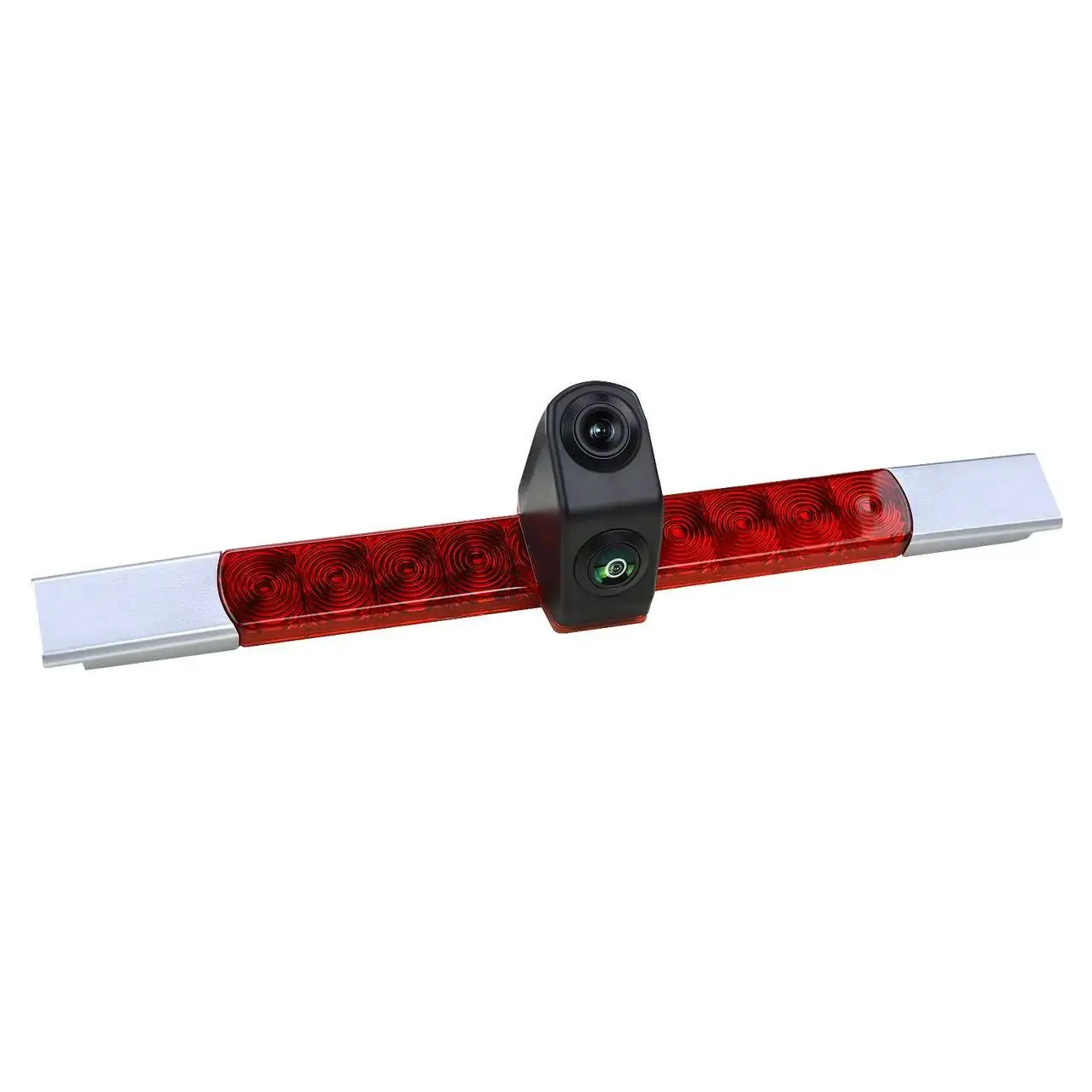

Double lens!! - Two cameras in one brake light housing. Now your reverse camera system is useful for 100% of the journey and not only when reversing. One for driving and one for parking.

【 Applicability 】

Brake light reverse camera kit for:

sunshine/Carado/Etrusco RV

Instead of Hella 2DA 343 106-201

Suitable for any flat body installation

【 High quality image 】

The brake light camera features a Super 1/3 CMOS 720P sensor with more color images.

【 Completely waterproof 】

All electronic components are 100% immersed in nano waterproof adhesive, IP68 grade, ready to meet the elements.

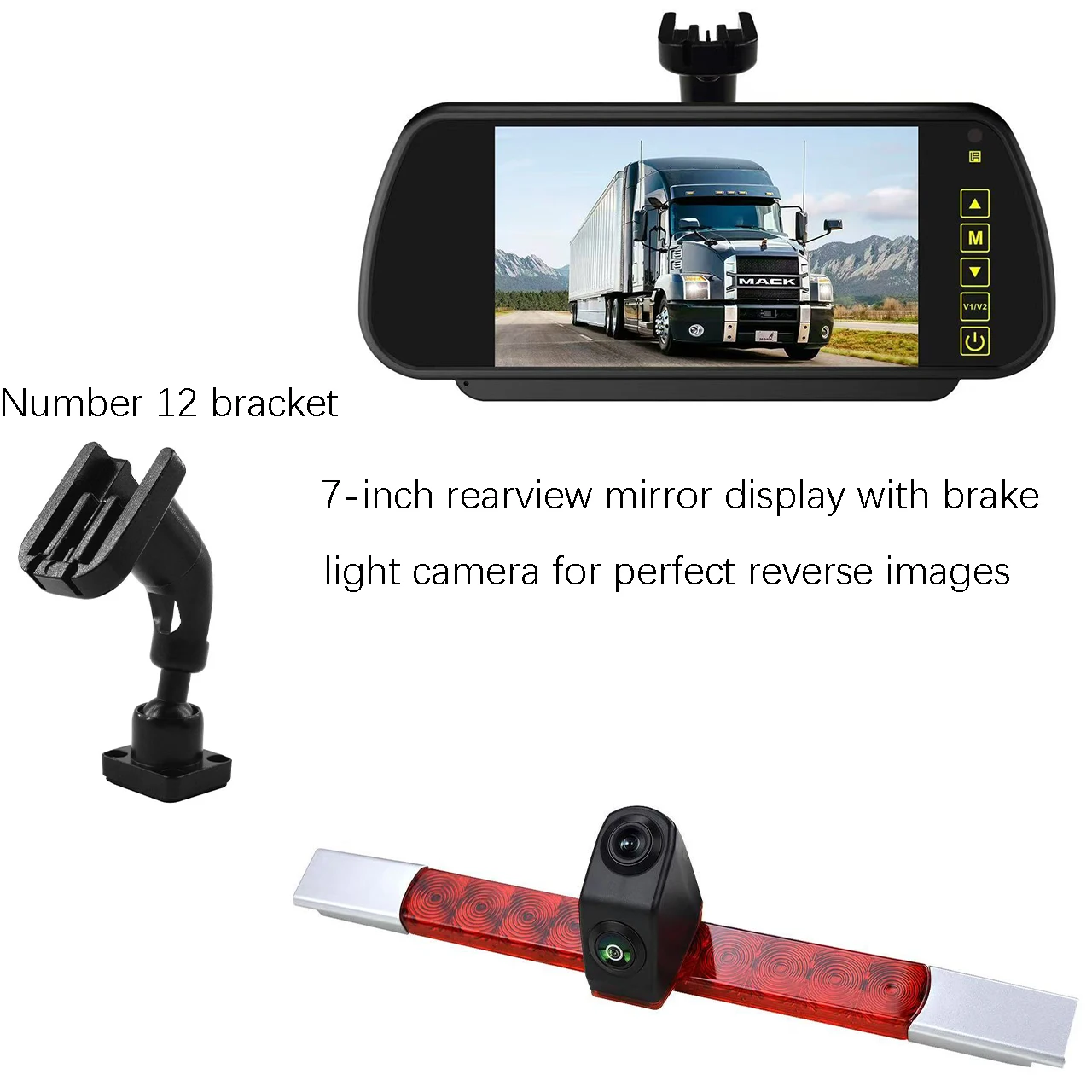

【 7-inch rearview mirror monitor 】

7-inch color TFT LCD AHD display with 2 video inputs, works perfectly with the rear-view camera and supports other AHD video inputs.

【 Three installation methods are optional 】

① Detachable installation

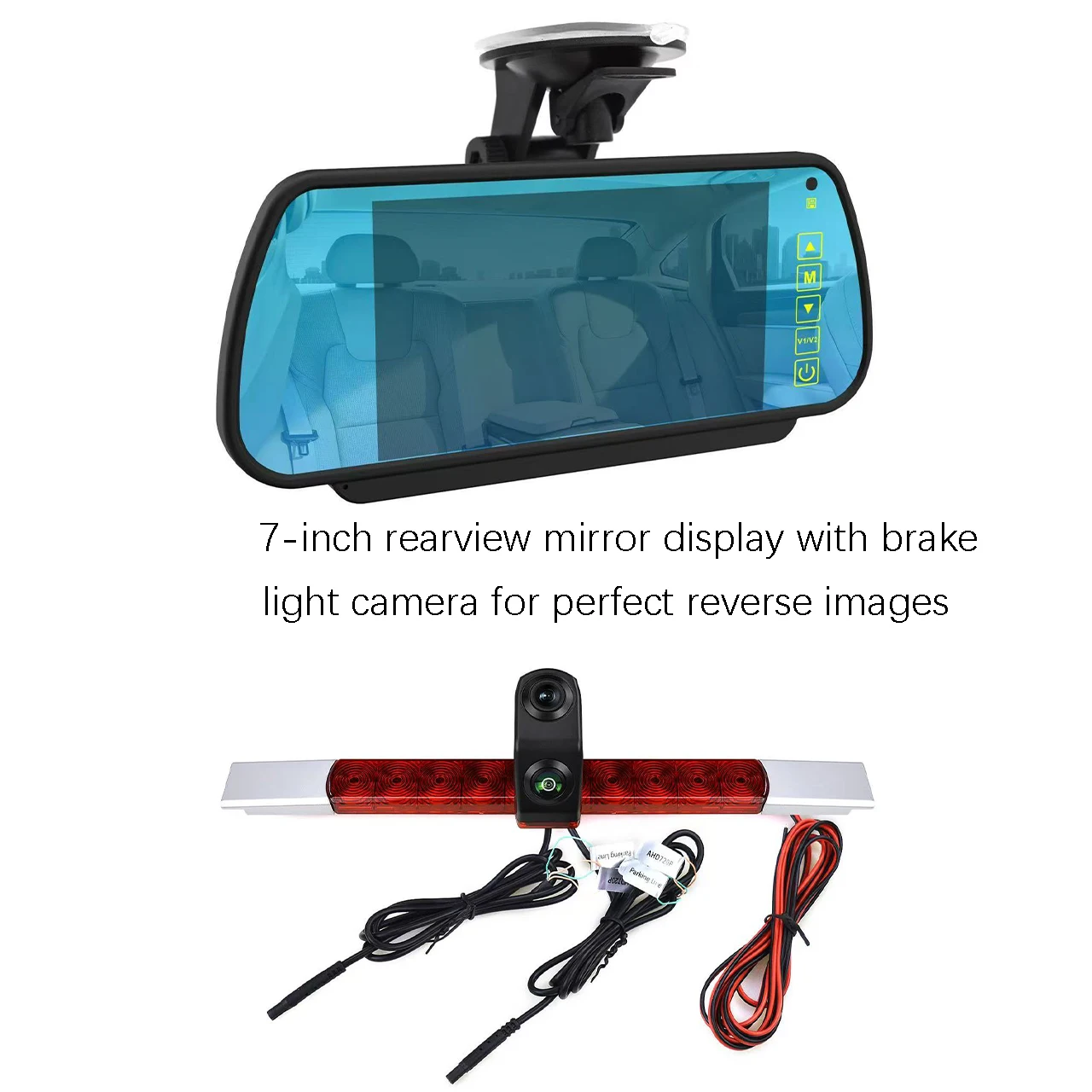

② Suction cup support installation

③ Windshield mirror button factory installation [If your windshield does not have any buttons, please tell us (we can provide you with #1 universal bracket)]

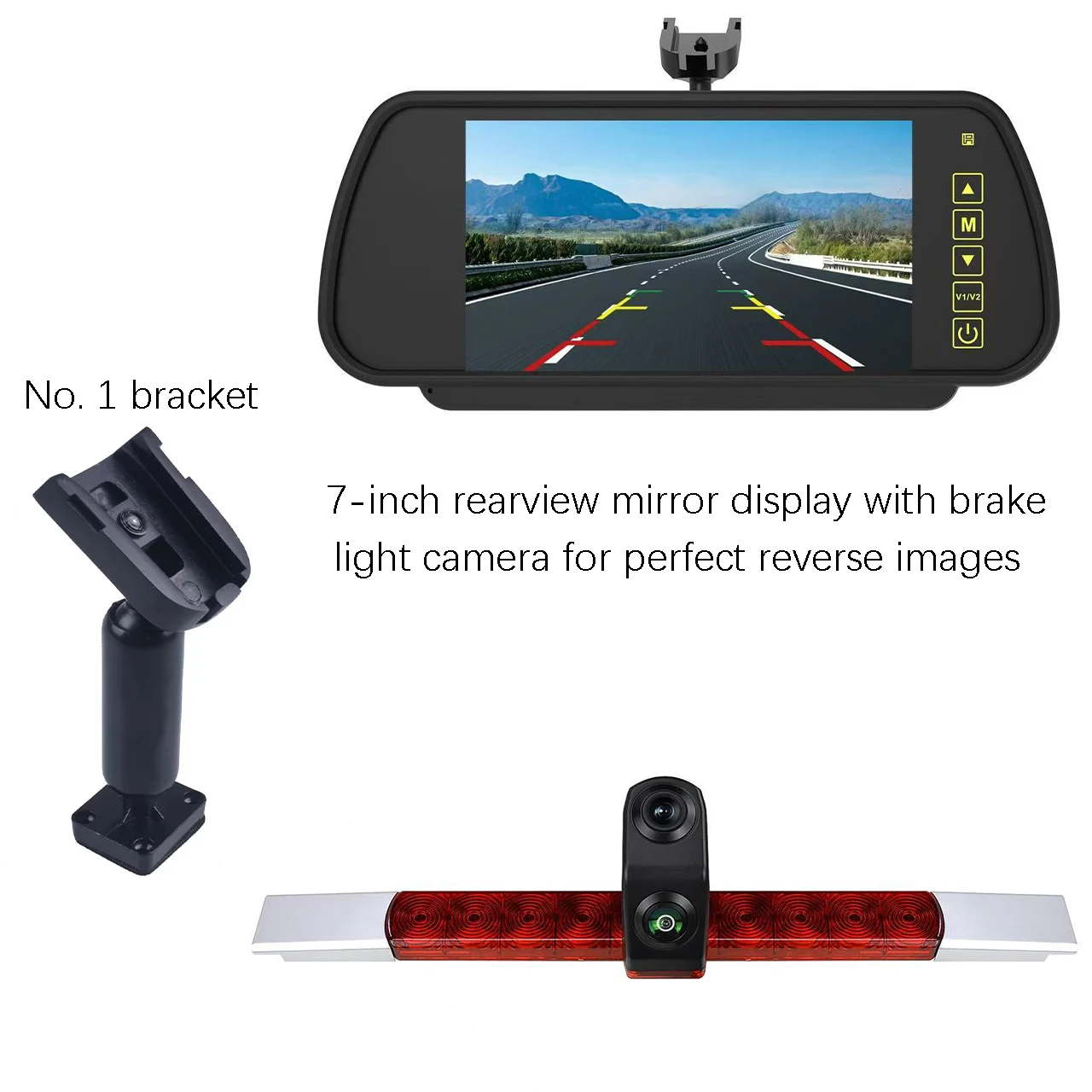

①. Detachable mounting

It clips to the existing interior rearview mirror. Install the sucker support

Please note: The suction cup bracket is not recommended for overhead installation, and the bottom of the display needs to be supported, as shown below. Original OEM windshield mounting

→ Note: Default (only number 1 bracket, please tell us which bracket number you need after placing your order, if you do not know which bracket is suitable for your car, you can take a photo to show your car's rearview mirror bracket)

Dual-lens brake light camera

Resolution: 1000TV line

Lens material: glass

Power supply: DC12V

Signal system: PAL

Resolution :1280 x720p

Lens Angle: 60°&140 °

Image sensor: 1/3 sensor

Parking line:

Minimum illumination: 0.1 lux

Features: IP68 waterproof

Dynamic range: bb0-60dB
